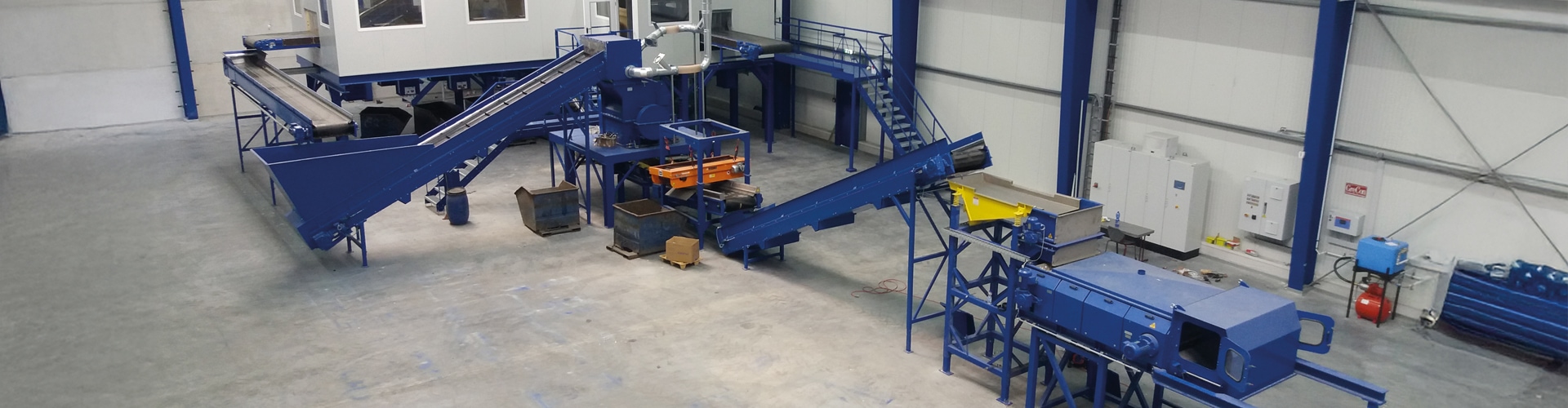

Flexible complete system for aluminium recycling
Maximum efficiency through flexible recycling processes
Leading international recycling companies have opted for ERDWICH to meet the increasing demands for purity and cost-effectiveness. ERDWICH has developed state-of-the-art plant technology that combines maximum efficiency with maximum safety.
The operator‘s existing recycling plant could no longer meet the increasing demands of the industry. The aim was to create a solution that would reliably process aluminum from mixed scrap fractions and efficiently remove interfering components such as FE and INOX material, foils or wood splinters. In addition, fire and explosion risks had to be minimized and the material throughput optimized.
The special feature of this system lies in its three flexible operating modes, which enable customized processing of different aluminium scrap fractions. By individually
adapting the processing parameters to the respective input material, maximum purity and efficiency is achieved.
Mode A:
Standard process for mixed aluminum scrap
- The aluminum scrap is fed directly into the RM1350 pre-shredder and then re-shredded in the HA800 hammer mill.
- Separation takes place via a combination of magnetic drum separator, air classifier and eddy current separator.
- This mode is suitable for heterogeneous material streams with varying impurities.
Modus B:
Processing of pure aluminium fractions
- Specially designed for pure aluminum scrap, this mode enables particularly fast and efficient material separation.
- After shredding by the RM1350 shredder, the material is sorted directly into FE and V2A material using a two-stage magnetic separation process.
Technical features:
ERDWICH plant technology combines high-performance shredding technology with high-precision separation processes to ensure maximum sorting purity. The recycling process includes:
Precise separation & sorting:
- Magnetic drum separator for FE and V2A separation.
- Air separation to remove foil and wood splinters.
- X-ray sorting for separate collection of aluminum alloys.
- Eddy current separator for clean non-ferrous metal separation.
- Laser induction separation for separating different aluminum alloys.
Systems for aluminium recycling
Technologically leading solutions for shredding and separating aluminium scrap.
